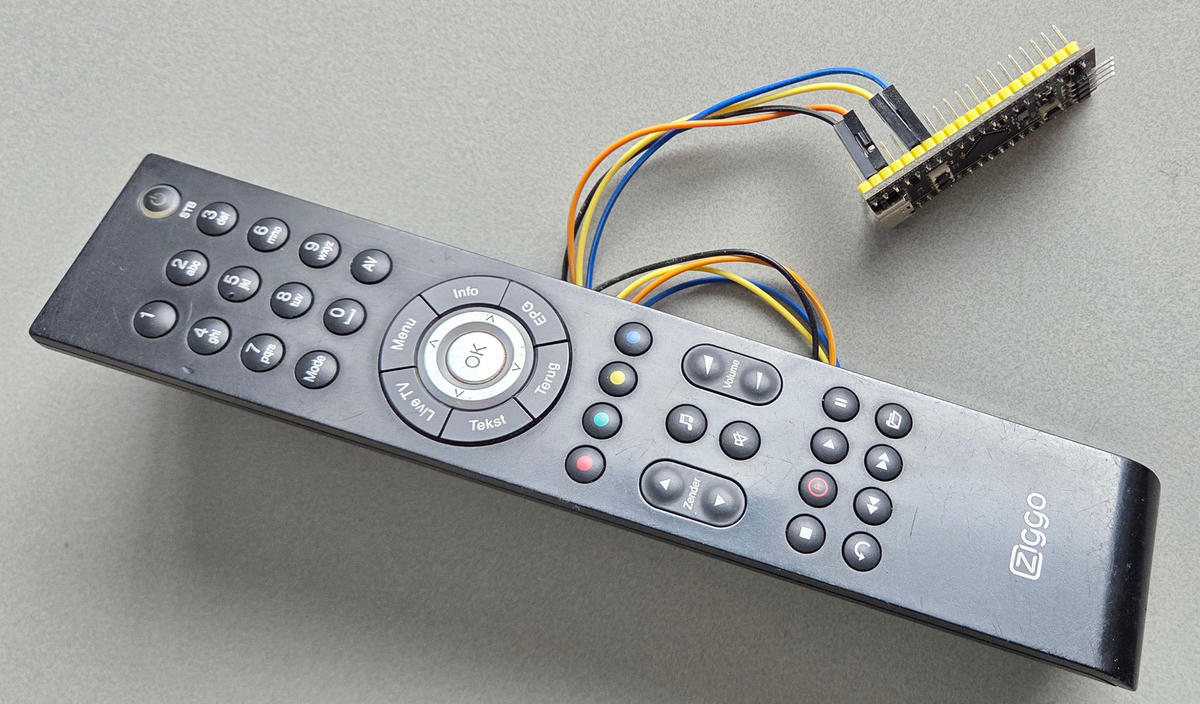

While working on the Loewe TV remote I discoverd a blog post where someone was investigating a problem with a Ziggo remote control. The remote was draining the button cell batteries in a few days.
In the post it was mentioned that the remote contains a MC9S08RD32DWE. The same one I was working on in the Loewe remote. I checked with the thrift store again and found some of these Ziggo remotes as well. I bought them and started investigating.
Ziggo matrix
| pin C0 | pin C1 | pin C2 | pin C3 | pin C4 | pin C5 | pin C6 | pin C7 | |
|---|---|---|---|---|---|---|---|---|
| pin A0 | volume up | tekst | mode | 7 | 4 | 1 | red | - |
| pin A1 | epg | info | 0 | 8 | 5 | 2 | green | - |
| pin A2 | folder | live tv | standby | 9 | left | 3 | yellow | - |
| pin A3 | cancel | stop | program down | down | 6 | up | blue | - |
| pin A4 | rewind | record | music | ok | right | - | - | - |
| pin A5 | forward | play | mute | program up | - | - | - | - |
| pin A6 | av | terug | volume down | pause | menu | - | - | - |
| pin A7 | - | - | - | - | - | - | - | - |
